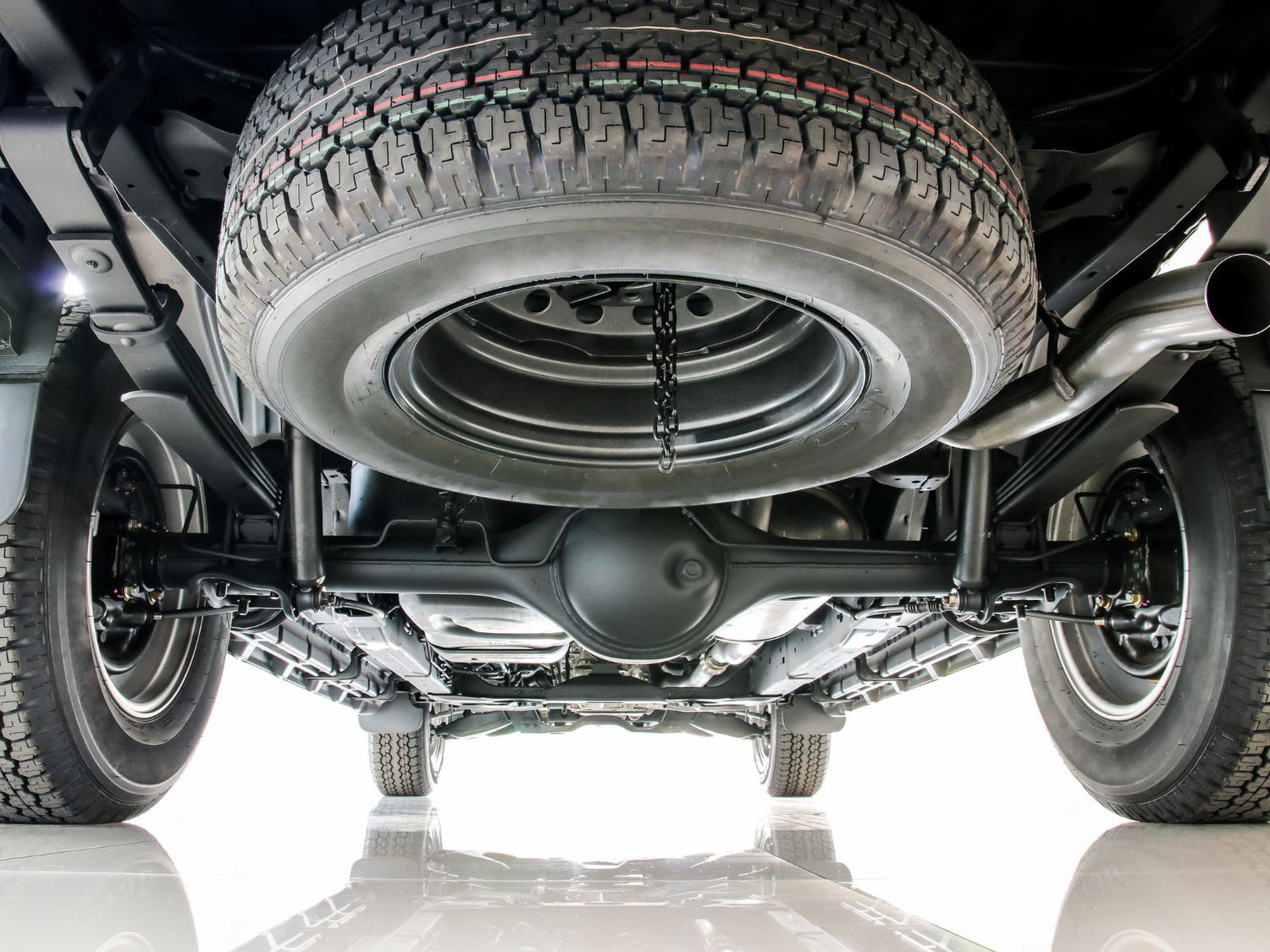

How Many Axles Does A Car Have? A Detailed Look

Having worked on cars for over 15 years now, I consider myself knowledgeable on most car topics and hope to clearly explain them to you. Today I wanted to provide an in-depth explainer on a common car question - how many axles does a car have? If you don't know much about axles, don't worry - I'll start from the basics and comprehensively cover this topic.

What Is A Car Axle?

Before jumping into the number of axles, let's first understand what an axle is.

An axle is a central shaft or rod that connects a pair of parallel wheels on a vehicle and allows them to rotate. The axle transfers power from the engine and transmission to the wheels to propel the vehicle. It also bears the weight of the vehicle plus any cargo or passengers inside.

In most cars, the axle is connected to the wheels via constant velocity (CV) joints. These allow the wheels to move up and down independently over bumps and angles, while still receiving power from the axle.

The axle contains differential gearing that allows the connected wheels to rotate at different speeds when turning. This is essential for smooth driving and reducing tire wear.

Types of Axles

There are a few different types of axles used in automotive applications:

• Dead axle - A simple solid beam that connects the wheels. Does not allow independent movement. Used mainly on trucks.
• Live axle - A beam axle with differential gearing. Allows wheels to spin independently. Common on rear-wheel drive cars.
• Split axle - Separate shafts with CV joints for each wheel. Allows independent suspension movement. Used on the front of front-wheel drive cars.
• Tandem axle - Two axles grouped closely together under heavy-duty trucks to distribute load.

Main Car Axle Configurations

Now let's look at the most common axle configurations used on passenger cars and light trucks:

Front-Wheel Drive

A front-wheel-drive car has two axles:

• Front axle - This is a split axle with independent CV joints for each front wheel. It handles steering and delivers engine power to the front wheels.
• Rear axle - The rear is a dead beam axle in most cases. It is not powered but carries rear weight and stabilizes the car.

Rear-Wheel Drive

A rear-wheel drive car also has two axles:

• Front axle - This is typically a split axle with independent suspension, allowing the front wheels to steer. It is not powered.
• Rear axle - The rear has a live beam axle that delivers power from the engine to the rear wheels. This handles acceleration and braking forces.

All-Wheel Drive / 4-Wheel Drive

AWD and 4WD systems have axles at both the front and rear delivering power to all four wheels:

• Front axle - Split axle with CV joints. Handles steering and delivers engine power.
• Rear axle - Live beam axle providing power to the rear. Or an optional split axle with independent suspension.

This maximizes traction in slippery conditions by keeping all four wheels powered. Some systems can shift torque between axles as needed.

How Many Axles Do Cars Have?

Now we get to the key question - how many axles does a car have?

The vast majority of modern passenger vehicles have:

• Two axles - One front and one rear. Includes front-wheel, rear-wheel, and all-wheel drive cars.

This two-axle configuration with four wheels total is the standard for regular cars, SUVs, crossovers, and light trucks used for personal transportation.

Having two axles balances vehicle handling, provides adequate traction, and evenly distributes weight between front and rear. This is the common setup across all major auto manufacturers.

Some exceptions with more than two axles include:

• Heavy duty trucks - 3 or 4 axles used on commercial trucks carrying very heavy loads.
• Sports cars - A few high-end sports cars have used 3 axles for better handling. The Bugatti Veyron had one front and two rear axles. But this is rare.
• Electric cars - Some electrics have a front axle for steering and an extra rear axle to distribute motor and battery weight. The Rivian pickup and SUV have three axles for example.

But in general, the standard car or light truck you'll encounter will have two axles. This simple but robust configuration has proven effective for over a century of real-world use.

Drivetrain And Axle Locations

The location of the drive axle(s) transmitting engine power varies depending on the drivetrain layout:

• Front-wheel drive - The Front axle is the drive axle
• Rear-wheel drive - The rear axle is drive axle
• All-wheel drive - Front and rear axles are drive axles

Front-wheel drive places the engine and transmission near the front axle to deliver power to the front.

Rear-wheel drive mounts the engine toward the middle and sends power rearwards through a driveshaft.

AWD systems have sophisticated gearing to shift torque between the axles. The fronts wheels, rear wheels, or all four can be powered.

Understanding which end is driven and how the axles connect is helpful when working on drivetrain components.

Axle Ratio And Gearing

An axle contains a gearset called the differential that transfers rotation from the drive shaft to the wheels.

The axle ratio or gearing of this differential affects vehicle performance:

• Higher ratios provide more torque for acceleration and towing. But reduce cruising speed.
• Lower ratios have less torque but allow higher speeds. They improve fuel economy on the highway.

Axle gear ratios are matched to the vehicle's purpose. Higher ratios help trucks tow and haul, while lower ratios benefit sports cars focused on top speed.

Overall axle configurations remain consistent, but gear ratios are tailored for each application.

Key Axle System Components

Besides the central axle shaft itself, there are several other important parts:

• CV joints - Allow wheels to move independently while transmitting torque from axle to wheels.
• Differential - Gearset inside axle that splits torque between wheels while allowing different speeds.
• Axle housing - Encloses axle parts like differential and bearings. Made of aluminum or steel.
• Drive shaft - On RWD vehicles, transfers power from the transmission to the rear axle.
• Wheel hubs - Mount wheels to ends of axle shafts. Contain wheel bearings.

Each component plays an integral role in delivering engine power to the drive wheels.

Axle Inspection And Maintenance

Axles are built to last but still require periodic inspection and maintenance:

• Check for leaks - Axle seals should not leak fluid. Replenish oil if low.
• Inspect axle boots - Split axles use rubber boots to protect CV joints. Replace if torn.
• Check for noise/vibration - Clicking or whining noises can indicate worn bearings.
• Change differential fluid - Helps lubricate gears. Follow manufacturer interval.
• Check suspension parts - Ball joints, bushings, etc support axle positioning.

Well-maintained axles greatly improve safety and prolong vehicle lifespan. Seek help from a professional technician for axle repairs.

Axle Issues And Failure Modes

Some common axle and differential failures include:

• Torn CV boots allow dirt inside to damage joints
• Leaking pinion seal causing loss of gear oil
• Worn wheel bearings causing play and noise
• Damaged ring/pinion gears inside the differential
• Cracked axle housing or bent axle shaft

Symptoms like vibrations, odd noises, and fluid leaks are warning signs. Address promptly to avoid breakdowns or accidents.

A damaged front axle can make steering control difficult. A failed rear axle will strand the vehicle. Axles are critical for safe driving.

Axle Designs And Engineering

Automotive engineers apply significant expertise when designing axles. Key considerations include:

• Vehicle weight - Axle strength must support the loaded vehicle without bending.
• Torque loads - Axle gears sized to transmit engine power smoothly.
• Steering requirements - Front axles allow sufficient wheel cut for maneuverability.
• Packaging - Components fit compactly around other drivetrain parts.
• NVH reduction - Noise/vibration/harshness minimized for comfort.
• Cost-effectiveness - Balance performance with affordable production.

Advancements in materials like lightweight alloys along with computer-aided design enable durable, quiet running axles.

Evolution Of The Automotive Axle

Axles have been an integral part of vehicles for over a century. Here are some key milestones:

• 1910s - Introduction of enclosed differentials and floating axle shafts. Allowed more robust power transfer.
• 1930s - Hypoid gear differentials were introduced for more efficient torque delivery.
• 1950s - Use of CV joints and independent front suspension. Enabled smoother, tighter handling.
• 1970s - Widespread adoption of front-wheel drive. Required reinventing front axle designs.
• 1980s - All-wheel drive systems with advanced differentials gain popularity.

Modern axle tech delivers ruggedness unimagined to early automotive pioneers. Continued innovation will improve future designs.

Conclusion

We've covered a lot of ground explaining this key vehicle component. To summarize:

• Passenger vehicles predominantly use two-axle configurations - one front and one rear.
• Axles transfer power from the engine to the wheels and support vehicle weight.
• Various axle types each have advantages for different applications.
• Axles require care and maintenance for maximum durability.

I hope this overview gives you a deeper understanding of what axles are, how they work, and why proper operation matters. Let me know if you have any other car questions!
