P0430 Car Code: Complete Guide to Diagnosis and Repair

Seeing that dreaded check engine light illuminate on your dashboard can be stressful, especially when it's accompanied by the mysterious P0430 car code. If you've recently scanned your vehicle and encountered this code, you're in the right place. This comprehensive guide will walk you through what the P0430 code means, why it happens, how to diagnose it, and most importantly—how to fix it without breaking the bank.

What Does the P0430 Car Code Mean?

The P0430 code stands for "Catalyst System Efficiency Below Threshold (Bank 2)." This diagnostic trouble code is triggered when your vehicle's onboard computer (ECU) detects that the catalytic converter in Bank 2 isn't operating efficiently enough to reduce harmful emissions to acceptable levels.

Breaking down the code:

• P - Indicates it's a powertrain-related issue (engine and transmission)
• 0 - Signifies it's a generic OBD-II code (common across different manufacturers)
• 4 - Refers to the auxiliary emissions control system
• 30 - Identifies the specific issue (catalyst efficiency in Bank 2)

Bank 2 refers to the side of the engine opposite to cylinder #1. In most vehicles with V-shaped engines (V6, V8, etc.), Bank 1 contains cylinder #1, while Bank 2 is the opposite side. If you have an inline engine, you likely won't see a P0430 code (you might see P0420 instead, which is the same issue but for Bank 1).

How Does a Catalytic Converter Work?

To understand the P0430 car code, you need to know how a catalytic converter functions. This component is a crucial part of your vehicle's emissions system, designed to convert harmful pollutants into less harmful gases before they exit your exhaust.

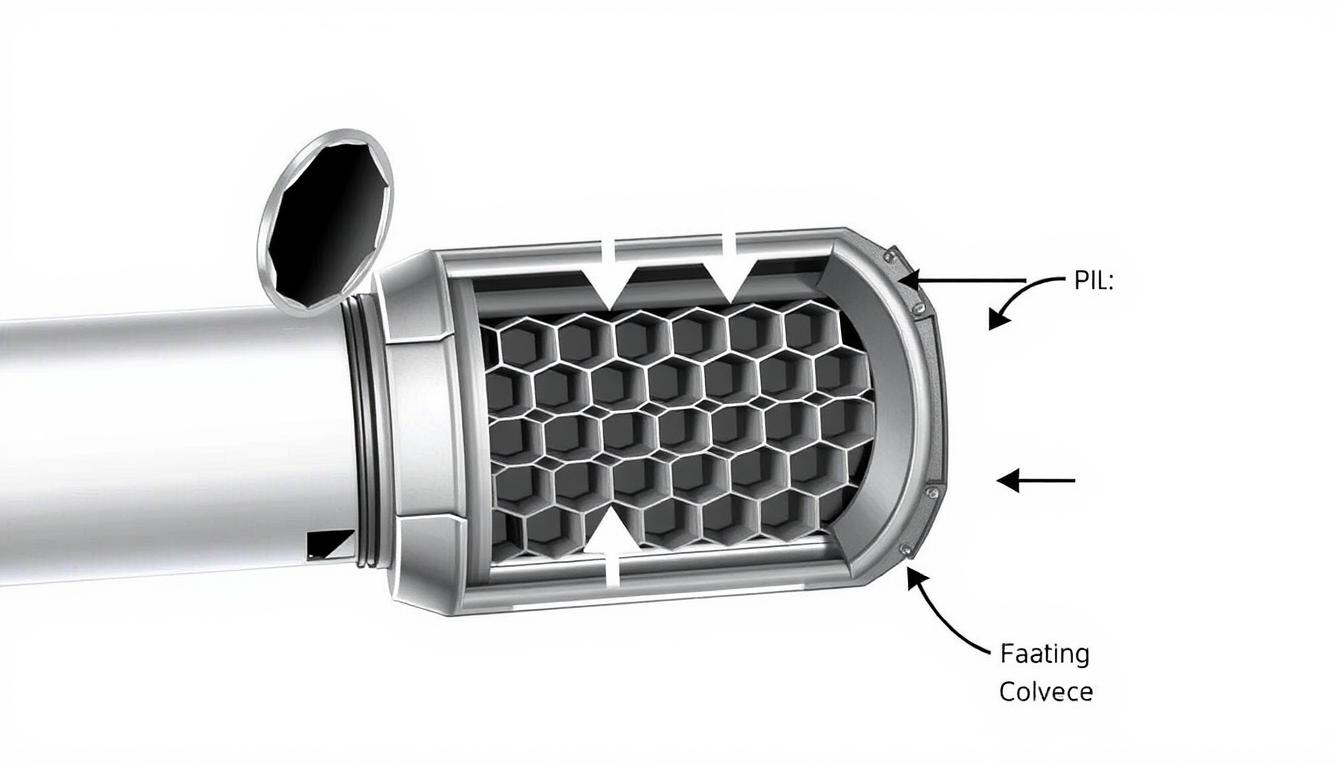

Inside the catalytic converter is a honeycomb structure coated with precious metals like platinum, palladium, and rhodium. These metals act as catalysts that facilitate chemical reactions:

• Converting carbon monoxide (CO) into carbon dioxide (CO2)
• Transforming unburned hydrocarbons (HC) into carbon dioxide and water
• Reducing nitrogen oxides (NOx) into nitrogen and oxygen

Your vehicle monitors this conversion process using oxygen sensors positioned before and after the catalytic converter. When the system efficiency drops below a predetermined threshold, the P0430 code is triggered.

Common Causes of the P0430 Car Code

Several issues can trigger the P0430 code in your vehicle. Understanding these causes is essential for proper diagnosis and repair:

Most Common Causes

• Failing catalytic converter - The most frequent cause, often due to age or contamination
• Faulty oxygen (O2) sensors - Can send incorrect readings to the ECU
• Exhaust leaks - Before or after the catalytic converter
• Engine misfires - Can damage the catalytic converter over time

Less Common Causes

• Rich fuel mixture - Excess fuel can overheat the converter
• Oil or coolant contamination - Can coat and damage the catalyst
• Damaged wiring - To the oxygen sensors
• ECU issues - Rare but possible software problems

It's worth noting that engine performance issues like misfires, rich running conditions, or oil consumption problems can damage your catalytic converter. Fixing the P0430 code without addressing these underlying issues may result in the problem returning shortly after repair.

Symptoms Associated with the P0430 Code

When your vehicle has a P0430 code, you might notice several symptoms beyond just the check engine light:

Primary Symptoms

• Illuminated check engine light - The most obvious indicator
• Reduced fuel economy - You may notice more frequent trips to the gas station
• Failed emissions test - Your vehicle will likely not pass state inspections

Secondary Symptoms

• Sulfur or rotten egg smell - From the exhaust
• Reduced engine performance - Especially during acceleration

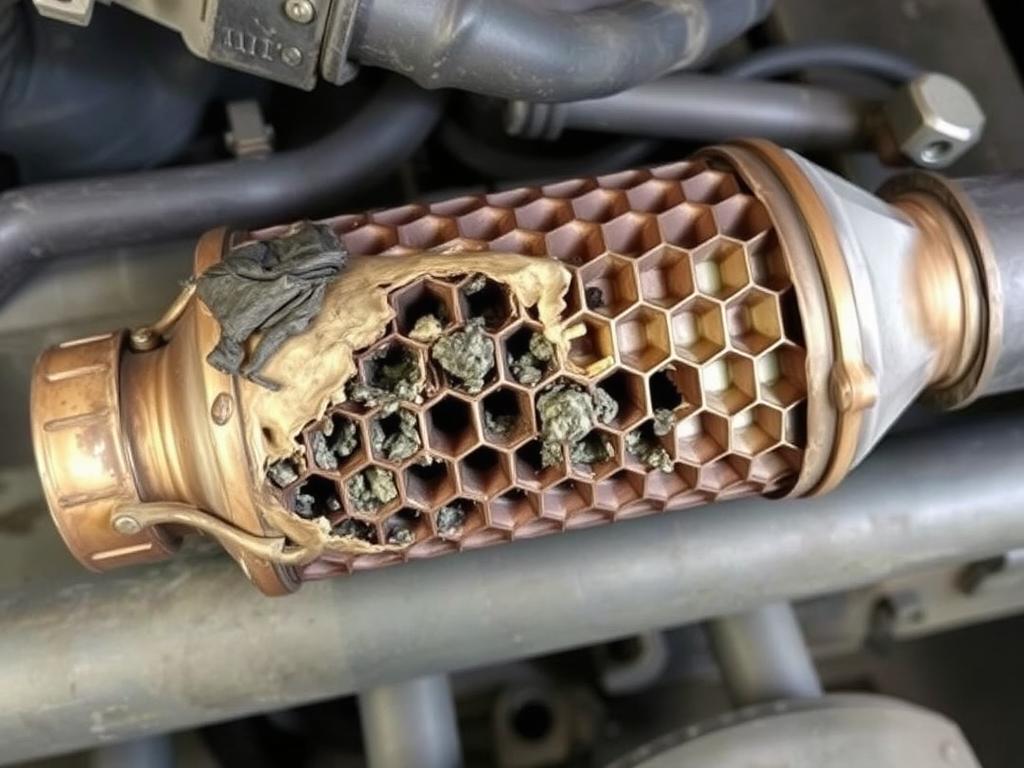

• Rattling noises - If the catalytic converter's honeycomb structure is damaged

In early stages, you might only see the check engine light without any noticeable performance issues. However, ignoring the problem can lead to more severe symptoms and potentially more expensive repairs down the line.

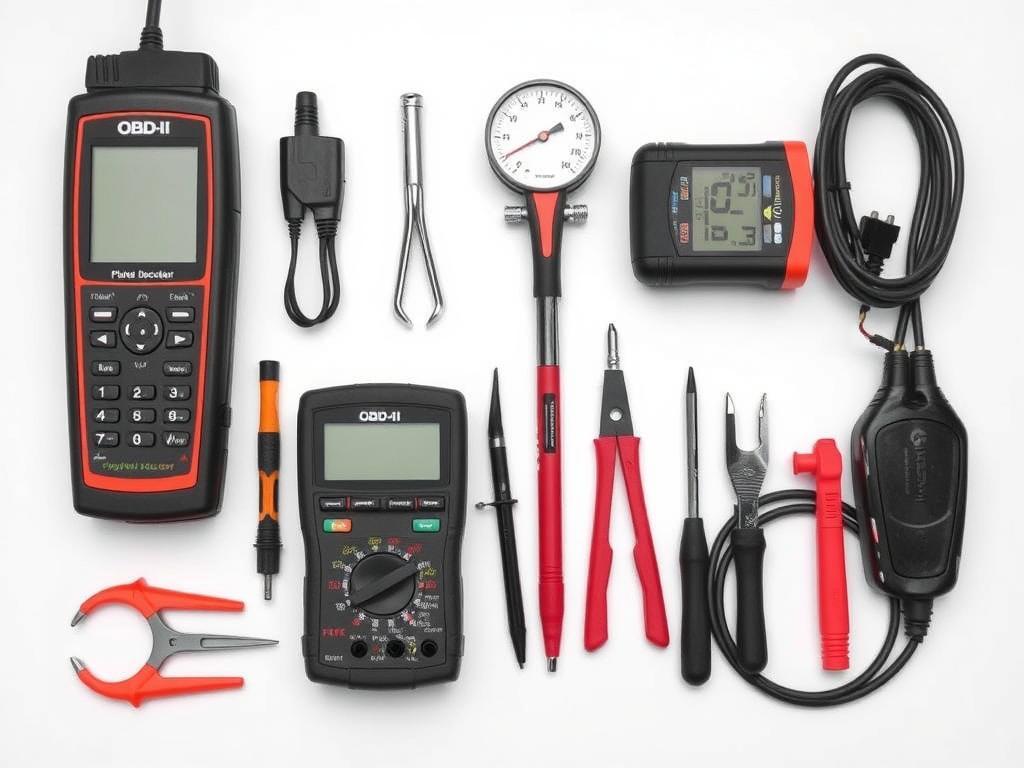

Tools Needed for Diagnosing the P0430 Code

Before attempting to diagnose the P0430 code, gather these essential tools:

• OBD-II scanner - To read and clear the code
• Digital multimeter - For testing oxygen sensors
• Basic hand tools - Wrenches, sockets, and screwdrivers
• Safety equipment - Gloves and eye protection
• Inspection mirror - To check hard-to-see areas of the exhaust

Professional-Grade Diagnostics at Home

Skip the mechanic's diagnostic fee. Get a reliable OBD-II scanner to read and clear codes yourself. Most scanners pay for themselves after just one use!

Step-by-Step Diagnostic Process

Follow these steps to properly diagnose the cause of your P0430 code:

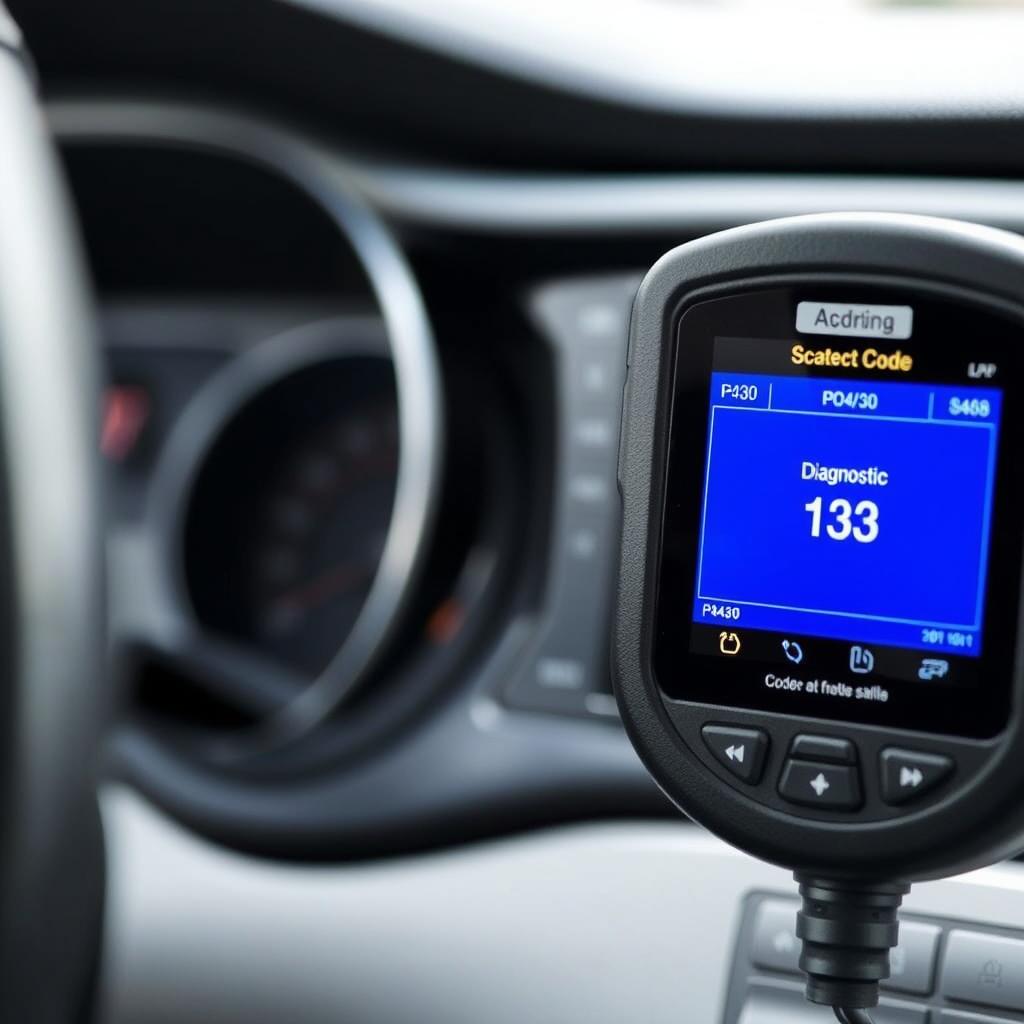

1. Verify the code - Use your OBD-II scanner to confirm the P0430 code and check for any additional codes that might be present.
2. Check for technical service bulletins (TSBs) - Some vehicles have known issues with catalytic converters or oxygen sensors that manufacturers have addressed.
3. Inspect the exhaust system - Look for visible damage, leaks, or rust in the exhaust manifold, pipes, and catalytic converter.
4. Test the oxygen sensors - Use a multimeter to check if the oxygen sensors are functioning correctly. A properly working upstream O2 sensor should fluctuate between 0.1V and 0.9V, while the downstream sensor should remain relatively steady around 0.45V.
5. Check for exhaust leaks - With the engine running, listen for unusual exhaust sounds or use a smoke test to identify leaks.
6. Look for underlying issues - Check for engine misfires, fuel system problems, or oil consumption that could damage the catalytic converter.

Remember that a thorough diagnosis is crucial before replacing expensive components like the catalytic converter. Many P0430 codes are resolved by fixing simpler issues like faulty oxygen sensors or exhaust leaks.

Testing Oxygen Sensors

Oxygen sensors play a critical role in monitoring your catalytic converter's efficiency. Here's how to test them:

A properly functioning catalytic converter system should show different readings between the upstream and downstream oxygen sensors. If both sensors show identical patterns, your catalytic converter likely isn't working efficiently.

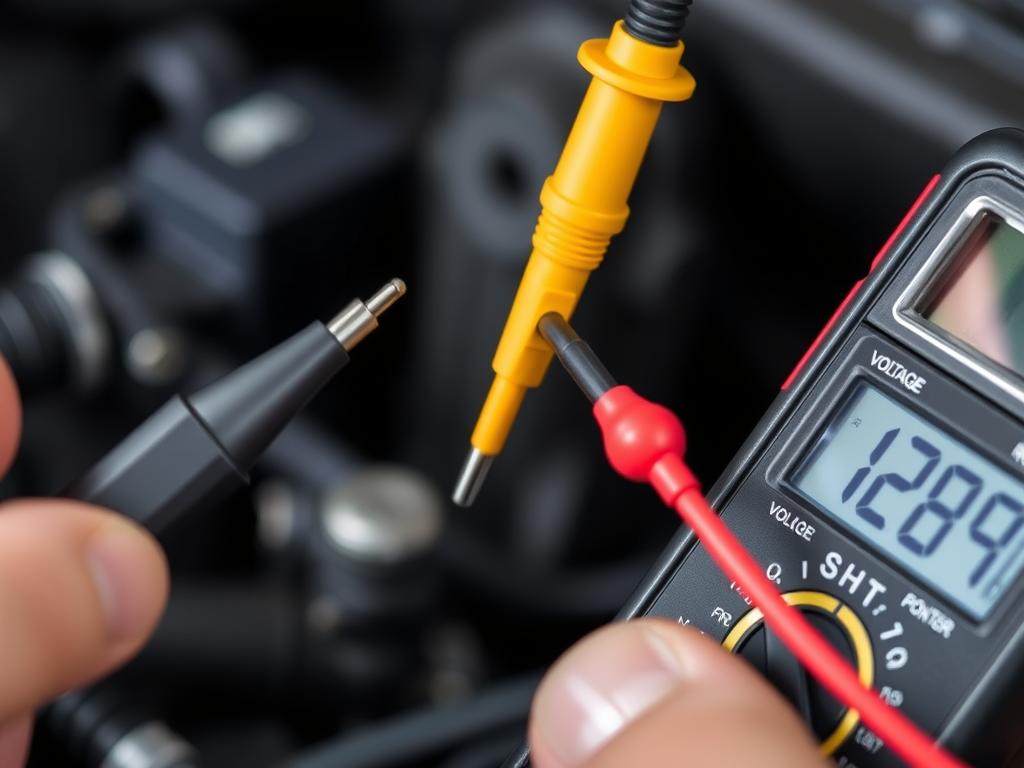

To test your oxygen sensors:

1. Locate both the upstream (before converter) and downstream (after converter) oxygen sensors on Bank 2
2. With the engine warmed up and running, connect your multimeter to the signal wire of each sensor
3. The upstream sensor should fluctuate between 0.1V and 0.9V
4. The downstream sensor should maintain a relatively steady voltage around 0.45V
5. If both sensors show the same pattern, your catalytic converter may be failing
6. If either sensor doesn't produce proper voltage readings, it may need replacement

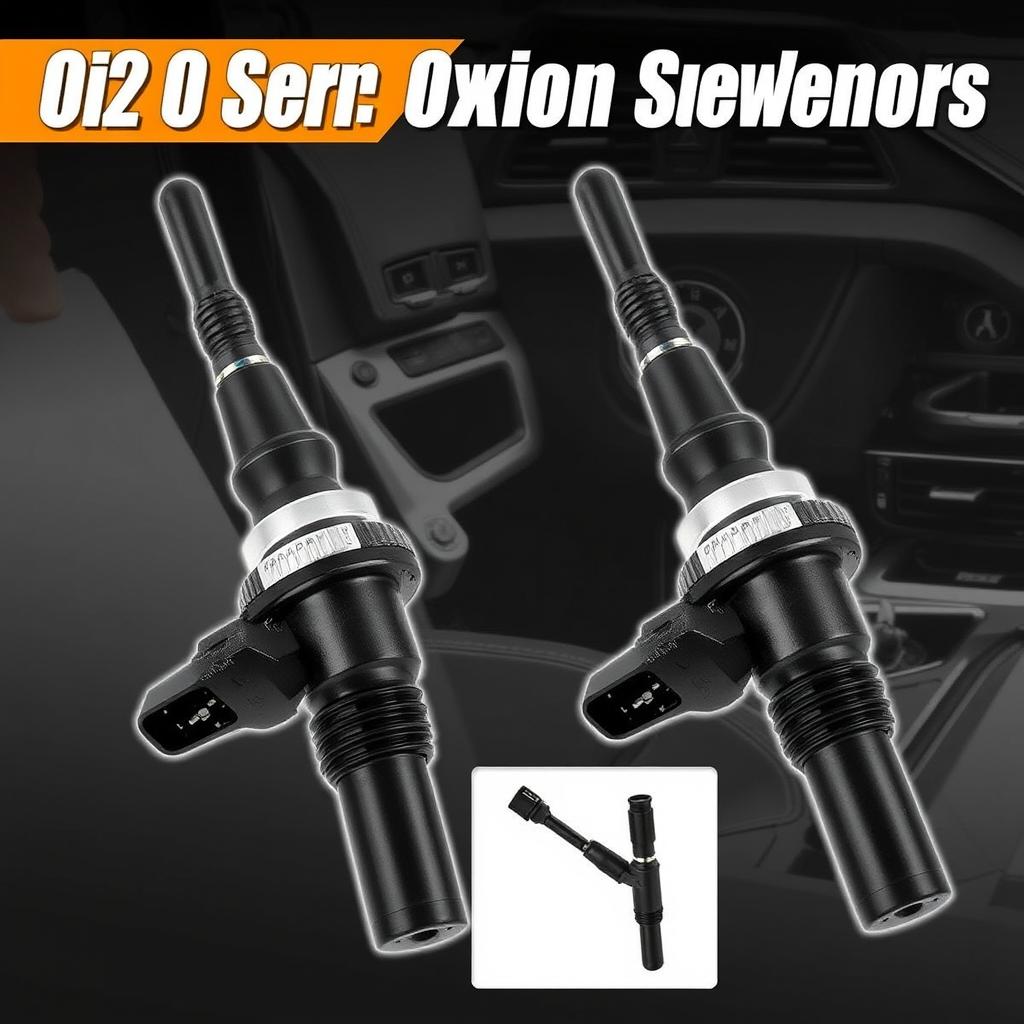

Quality Oxygen Sensors

Faulty O2 sensors are a common cause of the P0430 code. Replace yours with high-quality, OEM-equivalent sensors for reliable performance.

Repair Options for the P0430 Code

Once you've diagnosed the cause of your P0430 code, you have several repair options:

Important: In many states, it's illegal to remove or modify a catalytic converter. Always replace a failing converter with an EPA-compliant unit appropriate for your vehicle.

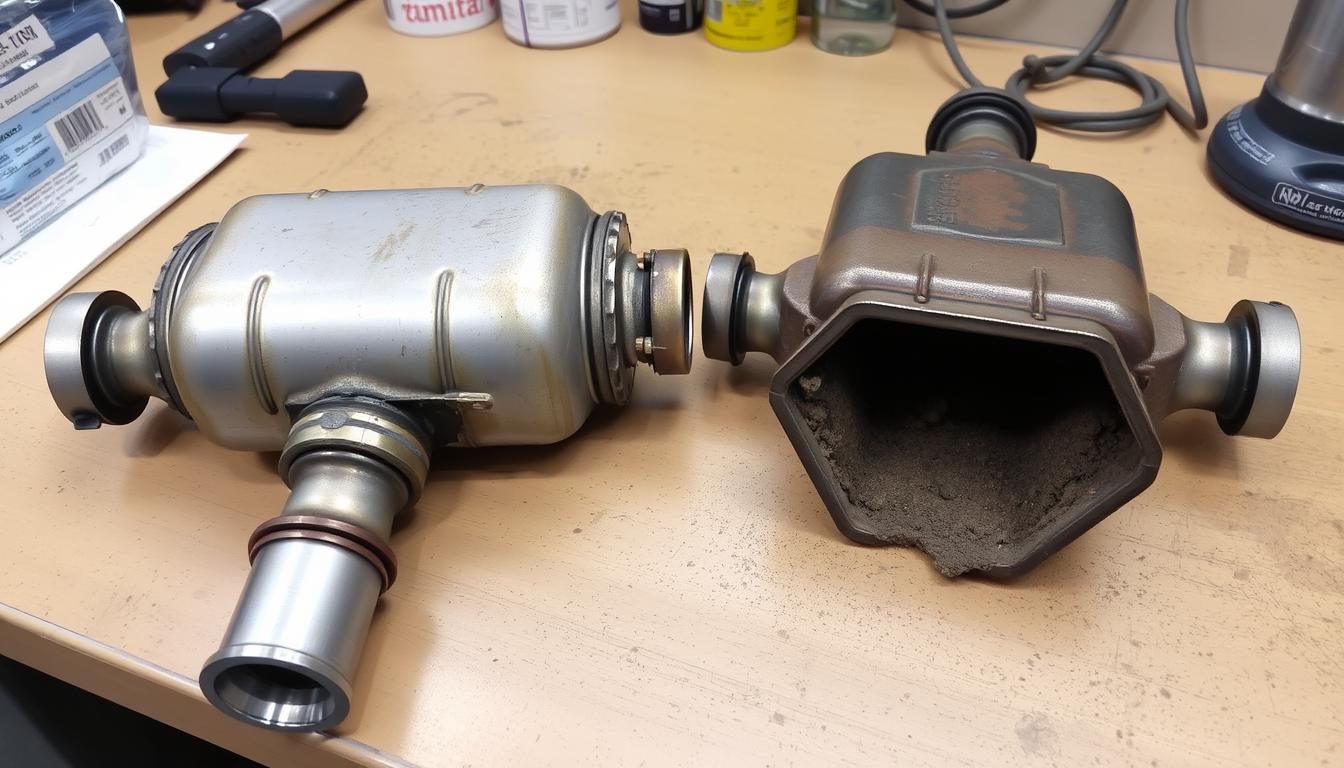

Replacing the Catalytic Converter

If you need to replace your catalytic converter, you have several options:

OEM Catalytic Converter

• Exact match to original specifications
• Highest quality and longest lifespan
• Most expensive option ($800-$2,500)
• Best warranty coverage

Aftermarket Catalytic Converter

• More affordable ($250-$800)
• Varying quality levels available
• Must be EPA-compliant
• May have shorter lifespan

When selecting a replacement catalytic converter, ensure it's approved for use in your state. California and states following CARB standards have stricter requirements than federal EPA standards.

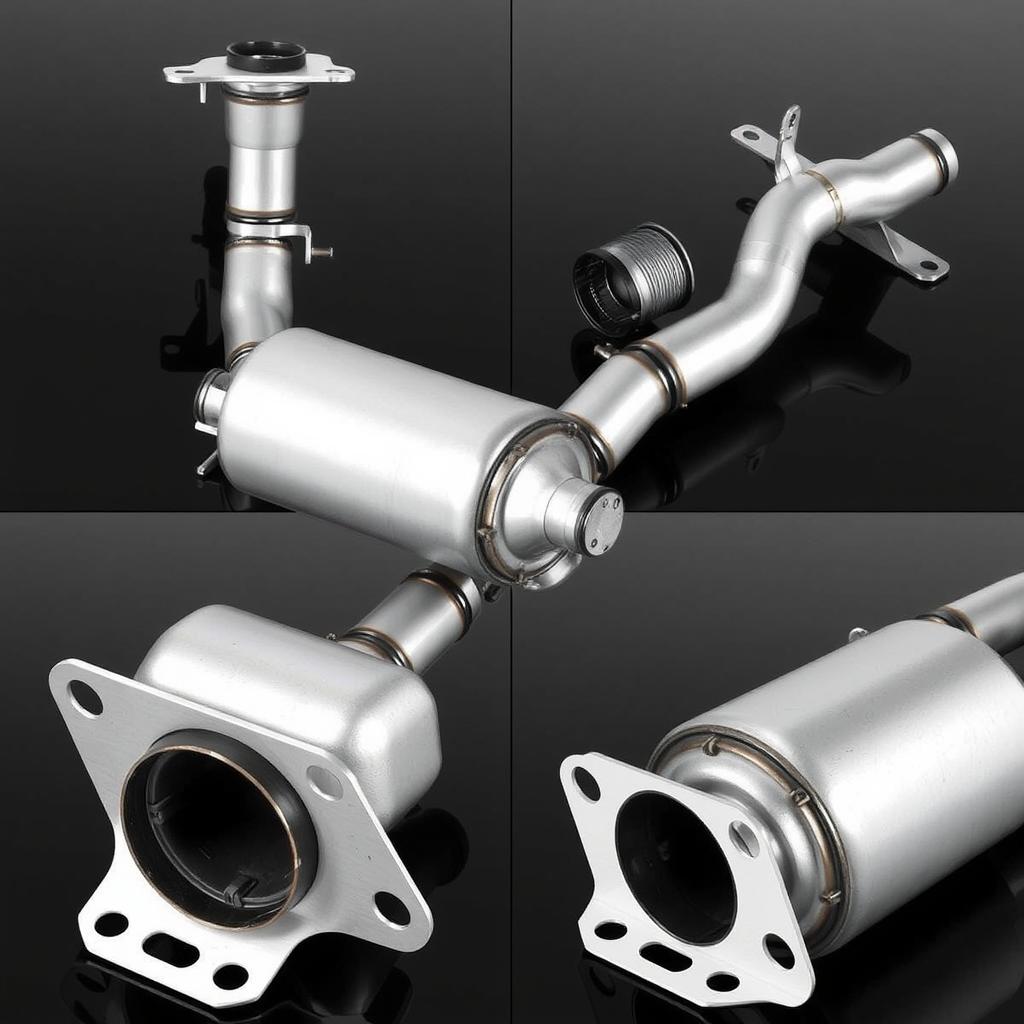

Quality Catalytic Converters

Find the right catalytic converter for your vehicle. We offer both OEM and high-quality aftermarket options that meet or exceed emissions standards.

DIY vs. Professional Repair

Deciding whether to tackle the P0430 code yourself or hire a professional depends on several factors:

DIY Repair

• Cost savings on labor (typically $85-$150 per hour)
• Learning experience about your vehicle
• Convenience of working on your own schedule
• Satisfaction of fixing it yourself

Professional Repair

• Expertise in diagnosing complex issues
• Specialized tools not available to most DIYers
• Warranty on parts and labor
• Time savings for you

If you're comfortable with basic automotive repairs and have access to the necessary tools, replacing oxygen sensors or fixing exhaust leaks can be reasonable DIY projects. However, catalytic converter replacement can be challenging due to rusted bolts, tight spaces, and the need for specialized tools in some cases.

Preventing Future P0430 Codes

To avoid dealing with the P0430 code in the future, follow these preventative measures:

• Regular maintenance - Follow your vehicle's recommended service schedule
• Address check engine lights promptly - Don't ignore warning signs
• Use quality fuel - Lower-quality fuels can contribute to catalytic converter issues
• Fix engine misfires immediately - Misfires can quickly damage catalytic converters
• Check for exhaust leaks regularly - Especially if you live in areas with road salt
• Replace oxygen sensors preventatively - Consider replacing them every 60,000-100,000 miles
• Monitor oil consumption - Excessive oil consumption can contaminate the catalytic converter

The average catalytic converter is designed to last the lifetime of the vehicle (around 100,000-150,000 miles). With proper care and addressing issues promptly, you can help ensure yours reaches its full potential lifespan.

Frequently Asked Questions About the P0430 Code

Can I drive with a P0430 code?

Yes, you can typically drive with a P0430 code for a short period. The vehicle will usually operate normally, but you may experience reduced fuel economy and increased emissions. However, it's best to address the issue promptly to prevent potential damage to other components and avoid failing emissions tests.

Will a P0430 code clear itself?

No, a P0430 code typically won't clear itself. The vehicle's computer continuously monitors catalytic converter efficiency, and if it remains below the threshold, the code will persist. Even if you clear the code with a scanner, it will likely return unless the underlying issue is fixed.

What's the difference between P0420 and P0430 codes?

Both codes indicate catalytic converter efficiency issues, but they refer to different banks of the engine. P0420 refers to Bank 1 (the side with cylinder #1), while P0430 refers to Bank 2 (the opposite side). The diagnostic process and repairs are similar for both codes.

Do catalytic converter cleaners really work for P0430?

Catalytic converter cleaners may help in mild cases where the converter is slightly contaminated but not physically damaged. They're worth trying as an inexpensive first step, but they rarely fix serious catalytic converter issues. If the converter's honeycomb structure is damaged or melted, no cleaner will restore it.

How long does a catalytic converter typically last?

A catalytic converter is designed to last the lifetime of the vehicle, typically 100,000-150,000 miles or more. However, factors like engine misfires, oil contamination, and physical damage can significantly reduce its lifespan.

Recommended Tools and Parts

OBD-II Scanner

Essential for reading and clearing the P0430 code. Look for one that provides live data streaming for more accurate diagnosis.

Oxygen Sensors

Quality O2 sensors are crucial for proper catalytic converter monitoring. Always use OEM-quality sensors for reliable performance.

Catalytic Converters

When replacement is necessary, choose a high-quality converter that meets emissions standards for your vehicle and location.

Conclusion

The P0430 car code indicates a problem with your vehicle's emissions system that should be addressed promptly. While it might seem intimidating at first, understanding the causes, symptoms, and repair options gives you the knowledge to make informed decisions about your vehicle's care.

Whether you choose to tackle the repairs yourself or seek professional help, addressing the P0430 code will help maintain your vehicle's performance, fuel efficiency, and environmental impact. Remember that proper diagnosis is crucial before replacing expensive components like the catalytic converter.

By following the preventative maintenance tips outlined in this guide, you can help extend the life of your catalytic converter and avoid seeing that check engine light in the future.
