How to Identify Positive and Negative Terminals on a Car Battery

Knowing how to identify the positive and negative terminals on your car battery is essential for many maintenance tasks, from jump-starting to replacing the battery. Connecting cables incorrectly can damage your vehicle's electrical system or even cause dangerous situations. This guide will walk you through the simple visual indicators and physical differences that help you correctly identify battery terminals every time.

Visual Indicators for Battery Terminal Identification

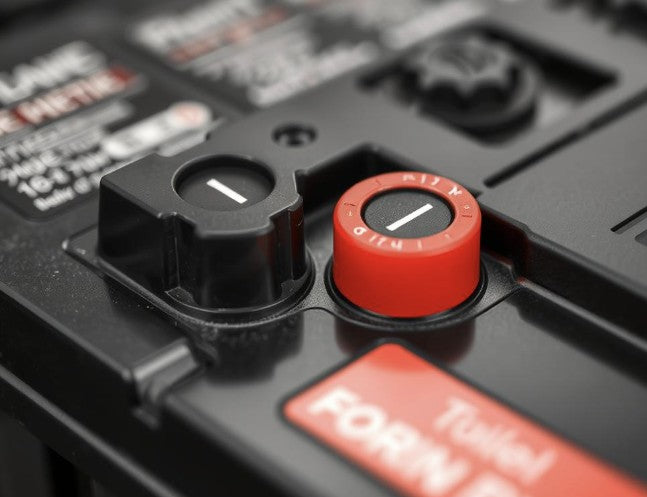

Color Coding: The Quickest Way to Identify Terminals

The most common and easiest way to identify battery terminals is through color coding:

Positive Terminal (+)

• Usually colored RED
• Often has a plastic cover for protection
• Marked with a plus sign (+)

Negative Terminal (-)

• Usually colored BLACK
• Typically lacks a protective cover
• Marked with a minus sign (-)

Terminal Symbols and Labels

Beyond color coding, car batteries have additional markings to help you identify the terminals:

• Look for a plus sign (+) stamped on or near the positive terminal
• Look for a minus sign (-) stamped on or near the negative terminal
• These symbols may appear on the battery casing or on the terminal itself
• Some batteries have the words "POS" and "NEG" printed near the respective terminals

Physical Differences Between Positive and Negative Terminals

If color coding and symbols are unclear or have worn away, you can still identify terminals by their physical characteristics:

Size Difference

On many car batteries, especially those with post-style terminals:

• The positive terminal is slightly larger in diameter than the negative terminal
• This size difference is a safety feature to prevent incorrect connections
• Positive terminal is typically 19.5mm while negative is 17.5mm in diameter

Terminal Position

The position of terminals can also provide clues:

• In many vehicles, the positive terminal is often positioned toward the front of the vehicle
• The negative terminal is typically connected to the vehicle's chassis via a ground strap

Not Sure About Your Battery Terminals?

If you're having trouble identifying your battery terminals or need assistance with battery maintenance, professional help is just a click away.

Safety Precautions When Working with Battery Terminals

WARNING: Incorrect handling of car battery terminals can lead to electrical shorts, damage to vehicle electronics, battery explosion, or personal injury. Always follow proper safety procedures.

Essential Safety Equipment

Before working with your car battery, gather these safety items:

• Insulated gloves to protect against electrical shock
• Safety glasses to shield eyes from potential acid splashes
• Wrench with insulated handle for loosening terminal connections
• Battery terminal puller for safe removal of tight terminals

Proper Disconnection Order

When disconnecting a car battery, the order matters for safety:

1. Turn off the engine and all electrical components
2. Disconnect the NEGATIVE (black) terminal first to prevent short circuits
3. Disconnect the POSITIVE (red) terminal second
4. When reconnecting, reverse the order: positive first, then negative

"Always disconnect the negative terminal first and connect it last. This prevents sparks near the battery where hydrogen gas may be present, reducing explosion risk."

- Automotive Safety Institute

Using Tools to Confirm Terminal Identification

Using a Multimeter for Verification

If you're still unsure about which terminal is which, a multimeter can provide definitive confirmation:

1. Set your multimeter to DC voltage (20V range)
2. Connect the red probe to one terminal and the black probe to the other
3. If the reading is positive (around +12.6V), your probes are correctly aligned with the terminals
4. If the reading is negative (around -12.6V), your probes are reversed

TIP: A healthy car battery should read between 12.4V and 12.7V when fully charged. A reading below 12.4V indicates your battery may need charging or replacement.

Need a Battery Test?

Many auto parts stores offer free battery testing. Get your battery checked professionally to ensure it's in good condition.

Common Mistakes When Identifying Battery Terminals

Dealing with Aftermarket Batteries

Aftermarket or replacement batteries sometimes deviate from standard color coding:

• Some aftermarket batteries use different colors or minimal color coding
• Always look for the + and - symbols rather than relying solely on colors
• Check your vehicle's manual if you're unsure about terminal identification

Corrosion-Covered Terminals

Corrosion can obscure terminal markings and color coding:

• White or greenish corrosion buildup can hide terminal markings
• Safely clean terminals with a wire brush and baking soda solution
• Never guess which terminal is which if markings are obscured

REMEMBER: If you cannot clearly identify the positive and negative terminals, seek professional help rather than risking damage to your vehicle or personal injury.

Frequently Asked Questions About Car Battery Terminals

What happens if I connect the terminals incorrectly?

Connecting terminals incorrectly can cause serious damage to your vehicle's electrical system, blow fuses, damage the battery, or even cause a battery explosion. Modern vehicles with sensitive electronics can suffer extensive damage from reversed polarity.

Why is the positive terminal usually covered?

The positive terminal is covered to prevent accidental contact with metal tools or the vehicle's frame, which could cause a short circuit. Since the vehicle's frame is connected to the negative terminal, any metal contact with the positive terminal while touching the frame creates a complete circuit.

Can I use the chassis instead of the negative terminal?

When jump-starting a vehicle, it's recommended to connect the negative cable to an unpainted metal part of the engine block or chassis rather than directly to the negative terminal of the dead battery. This reduces the risk of sparks near the battery where hydrogen gas might be present.

Need Professional Battery Service?

If you're uncomfortable working with your car battery or need a replacement, professional help is available.

Conclusion: Safe Battery Terminal Identification

Correctly identifying the positive and negative terminals on your car battery is a fundamental skill for basic car maintenance. By looking for color coding (red for positive, black for negative), checking for + and - symbols, and noting physical differences like terminal size, you can safely work with your car battery.

Remember that safety should always be your priority when working with car batteries. Wear appropriate safety gear, disconnect terminals in the proper order, and never hesitate to seek professional help if you're unsure. With the knowledge from this guide, you can confidently identify your car battery terminals and handle basic battery maintenance tasks safely.
